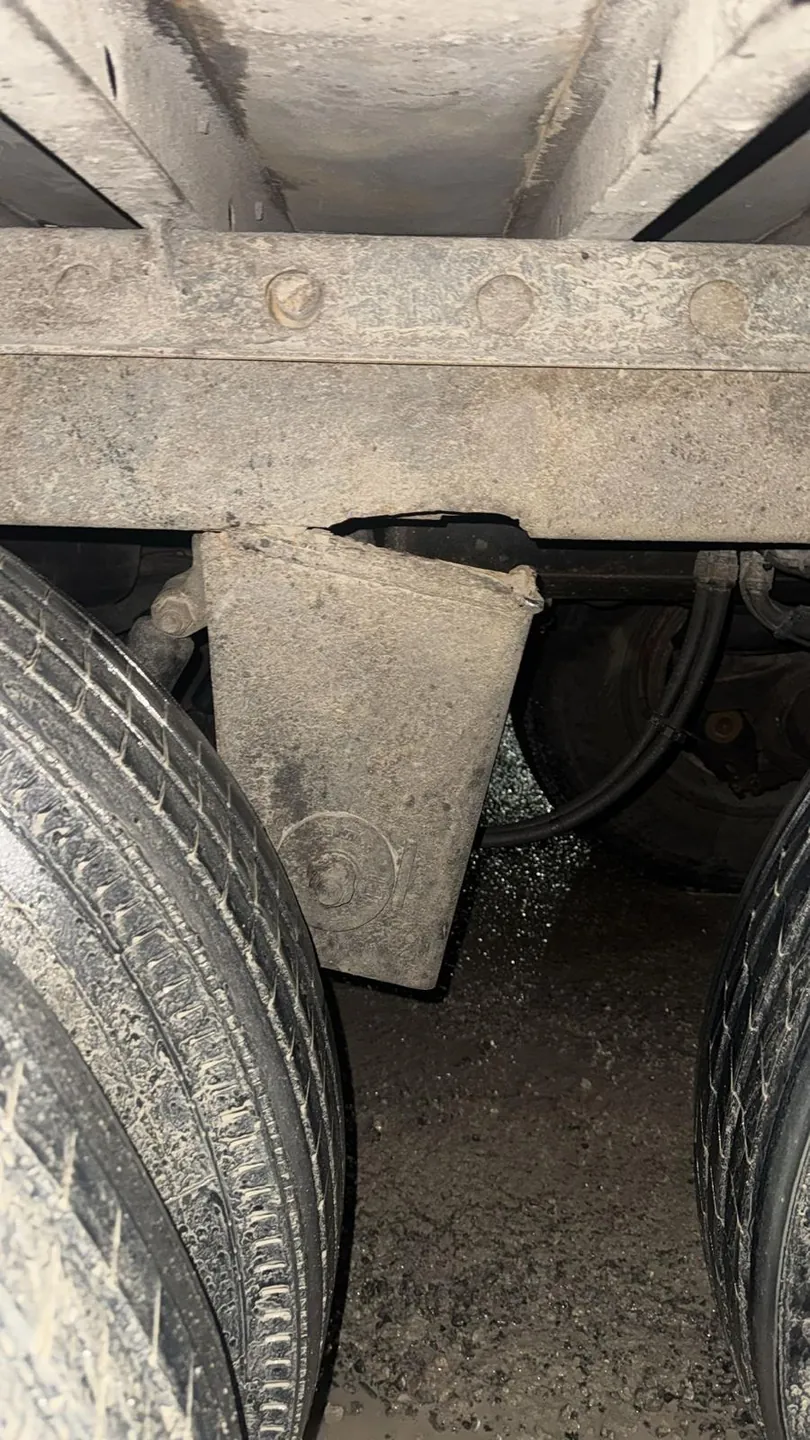

What a hanger does and why it cracks
Each spring or suspension arm bolts or welds to a hanger, and the hanger is fixed to the frame rail or cross members. Braking, acceleration, bumps and axle side-loads all go through that bracket into the frame. It is a small part carrying a lot of work.
The causes we see most often are the ones you would expect:
- Potholes and hard hits on curbs, rail crossings and rough yards.
- Overloading or uneven loads that push extra force through one axle.
- A previous weld that was not done properly and has cracked again, often right at the edge of the old repair.
- Worn bushings or loose U-bolts and fasteners, which let the parts move and hammer the hanger.
- Rust and salt thinning the steel over winters, which makes a crack easier to start.
Can you keep hauling with a cracked hanger?
Most repair pages skip this, and it is the question that matters first. We cannot judge a crack from a description, and we will not pretend to. Here is how to think about it:
- Cracks grow. Every brake application and bump works the crack a little more. A hairline today can be a full break a few trips later.
- A shiny, fresh crack is moving right now. Dark, dirty cracks are older, but old does not mean safe.
- If the hanger lets go, the axle can shift. That affects tracking, braking and tires, and it can damage the frame rail the hanger is attached to.
- Loaded changes everything. If the trailer is loaded and you are unsure, stop. Do not make the decision at highway speed.
A short, slow move empty to a safe yard may be reasonable once someone has looked at photos. Driving it down the 401 or 410 to finish a delivery is not a decision to make by yourself. If it has failed on the road, our guide on what to do when a trailer breaks down on the highway in the GTA covers the safe first steps. Note that we do not do repairs on the highway shoulder, so the unit needs to be somewhere safe first.
How to inspect both sides, not just the crack you found
Most forum threads stop at "found a crack, welded it." Then the hanger on the other side, or the next axle, cracks a few months later. The same force went through all of them.
- Check both sides of the axle and every hanger on the bogie, front and rear.
- Look at the frame rail or cross member where the hanger attaches, not only the hanger itself.
- Check old welds for hairline cracks along the toe, where the weld meets the base metal.
- Look at bushings, bolts, U-bolts and equalizer or pivot points for wear and play.
- Clean off dirt and undercoating with a wire brush before judging. Cracks hide under road grime.
Do this with the trailer parked, chocked and safely supported. Do not crawl under a unit that is not stable.
Weld it or replace it?
Repair kits and videos tend to show one answer: V-groove the crack, weld it, add a plate. That is a valid repair on the right hanger. It is the wrong repair on the wrong one. We look at four things before choosing.
- The frame flange or rail. If the metal the hanger attaches to is cracked, bent or torn, welding the hanger alone does not fix the problem.
- Bolt holes. Elongated or egged holes mean the joint has been moving. A weld on top of a loose joint cracks again.
- A prior repair that failed. If someone welded it before and it cracked again, the first fix did not address the cause. Replacing the hanger, and finding what overloaded it, is usually the stronger answer.
- Rust-thin steel. Welding thin, scaled metal does not last. A good welder will tell you when welding is not the answer, even if it is the cheaper-looking option.
When the steel is sound and the crack is clean, the process is straightforward: the crack is ground out to the end, the area is cleaned to bare metal, welded in passes and usually reinforced so the load is not sitting on the same spot again. When the hanger is the problem, it is cut off, the frame area is prepared and a new hanger is fitted and welded. For the wider picture on the same decision, see our guide on cracked trailer cross member repair.
What to check after the repair
A repaired hanger is only half the job. These are the checks that tend to get skipped:
- Axle alignment and tracking. If the axle moved when the hanger cracked, or the hanger is replaced, the axle has to sit square to the kingpin and to the other axles. Otherwise you get fast tire wear and a trailer that pulls or tracks crooked.
- Bushings and bolts. Welding puts heat into the area. Rubber bushings close to the weld can be damaged by it, and bolts that saw heat or strain may need replacing instead of reusing. Worn bushings that caused the cracking should be replaced, not put back.
- Tires and brakes. Look for odd wear on the tires of the axle that was affected, and check the brake components for damage from the movement.
- Re-check after a few trips. Look at the repair and the opposite side again once the trailer has been back in service.
Our trailer suspension repair service covers hangers, brackets and the related suspension work, so these items can be dealt with in the same visit.
On-site repair and inspection
Our welding truck carries MIG, stick and plasma equipment and its own generator, so many hanger repairs are done where the trailer is parked, without a tow. That works when the trailer is on firm, flat ground with room to work around the bogie. Bigger jobs, such as a hanger with frame damage, may come to our shop at 115 Orenda Rd in Brampton. Our mobile trailer welding page explains how a call-out works, and the trailer welding and fabrication service covers the shop side.
On inspection: a cracked or poorly repaired hanger is the kind of defect that can fail an MTO annual safety inspection or be written up at a CVSA roadside inspection. Our welds are done to pass both. We say that about how the weld is done, not as a promise about any particular part. Some hangers are not repairable, and we will say so.
How to photograph a cracked hanger for a quote
Good photos often decide whether the job is a mobile repair or a shop job. From a safe position, take:
- A wide shot of the whole bogie from the side, so we can see which hanger and which axle.
- A close-up of the crack from straight on, with the dirt brushed off if you can.
- A shot of how the hanger meets the frame, showing the rail, the bolts and any old welds.
- The other side of the same axle, for comparison.
Send them to WhatsApp 437-985-7311 with the trailer type, whether it is loaded and where it is parked. We do not guess prices from a description, so we quote from the photos before we start.
Where we work
We are based in Brampton and also work in Mississauga, Toronto, Vaughan, Milton, Oakville and Caledon. Hours are 7 AM to 7 PM, seven days a week, and call-outs are usually within 24 hours. There is no overnight service. If a hanger cracks at 9 PM, get the unit safe, send photos and plan on the first morning slot.
Call 437-985-7311 WhatsApp photos
Frequently asked questions
Can I keep hauling with a cracked suspension hanger?
Treat it as no until someone has looked at it. The hanger holds the axle to the trailer, so a crack can let go under braking or a pothole. If the trailer is loaded and you are not sure, stop, take photos and call 437-985-7311 before the next leg.
Should a cracked hanger be welded or replaced?
It depends on the steel around the crack. A clean crack in sound metal can be welded and reinforced. If the frame flange is damaged, the bolt holes are elongated, an earlier weld has already failed or the steel is rusted thin, replacing the hanger is the stronger fix. We decide after we see it.
Can you repair a hanger at my yard in Brampton or the GTA?
Often yes. Our truck carries MIG, stick and plasma equipment and a generator, so many hanger repairs are done where the trailer is parked. Hours are 7 AM to 7 PM, seven days a week, and we do not do highway-shoulder repairs or overnight work. Call-outs are usually within 24 hours.
Will the repair pass an MTO or CVSA inspection?
Our welds are done to pass MTO annual safety and CVSA roadside inspections. Whether a particular hanger can be repaired at all is decided after we inspect it, and sometimes the honest answer is replacement.
How do I get a price for a cracked hanger?
Send photos on WhatsApp to 437-985-7311: a wide shot, a close-up of the crack from straight on and a view of how the hanger meets the frame. We do not guess prices from a description, so we quote from the pictures.
